EtherCAT

Facebook   Twitter   Delicious   Google   My EC21   Email this page   Report Item Inquire now

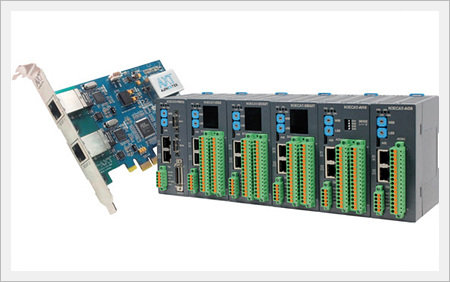

EtherCAT

Click to enlarge image

 Origin

Korea


PCIe-RxxIF-ECAT

.100Mbps Full duplex
.8 Axes (Max. 64Axes)
.CiA-402(DS-402) Server, and the step that supports the Device Profile driver support
.Max 256 Slave Module Control
.100usec ~ 5msec Cycle Time support
Item
Specifications
Communication type
EtherCAT distributed network specification
Communication port
RJ45
Physical Layer
100Base-TX Full Duplex(by IEEE 802.3u)
Transmission speed
100 Mbit/s
Transmission cycle time
Support 100usec ~ 5msec Cycle Time
Transmission bytes
1,488 Byte (1 Packet)
Control Axis
8Axes ~ (Max 64Axes), I/O Slave Only
Max. install board of system
1 board
LED display
Link(Green), Com(Yellow)
Number of configuration nodes
Max 256 Nodes
Network connection
RJ45 RX/TX , Standard STP cable (above CAT5e)
Bus Interface
Up to 100m between 2 nodes
Connector
Comm.: RJ45 LAN x 2EA
Power supply/Current consumption
DC 3.0V/1A
Operation temperature/humidity
Temperature 0~60°C/Humidity 5~80% (Non-condensation)
Exterior dimension product
130mm x 85mm

3ECAT-PM2Q/N3ECAT-PM4Q

.EtherCAT based 2(4)axis slave motion function module
.100Mbps Full duplex
.Support various encoder input and pulse output method
.LED indicator for module status display
Item
Specifications

N3ECAT-PM2Q
N3ECAT-PM4Q
Module Function
2 axes motion
4 axes motion
Slave ID setting
Decimal number rotary switch x 2 (0~31)
LED display
Power(Yellow), Link(Green), Error(Red), Communication(Green)
Pulse output
Differential Line Driver (Max. 10MPPS)
Encoder input
High-speed Photo-coupler (5VDC, Max. 4MPPS)
Trigger output
Differential, Open-collector (24VDC Level)
Connector
Comm : RJ45 LAN x 2EA
26pin axis connector x 2EA
26pin Motion I/O connector x 1EA
Comm : RJ45 LAN x 2EA
26pin axis connector x 4A
26pin Motion I/O connector x 2A
Mounting method
Standard 35mm DIN rail mounting
Power supply/Current consumption
DC 24V/Max. 200mA (Connected to TB1 outside the module)
Operation temp./humi.
Temperature 0~55°C/Humidity 5~90% (Non-condensation)
Storage temp.
-20~70°C
Weight
202g
Exterior dimension product
112(H)mm x 90(D)mm x 44(W)mm
112(H)mm x 90(D)mm x 54(W)mm

N3ECAT-CNT2

.EtherCAT based 2ch slave count function module
.100Mbps Full duplex
.Count input 2ch(Max. 4MHz)
.Trigger output 2ch(Differential, TTL, Open-collector)
.LED indicator for module status display
Item
Specifications
Module Function
2ch counter
Slave ID setting
Hexadecimal rotary switch x 2(00h ~ FFh)
LED display
Power(Yellow), Link(Green), Error(Red), Run(Green)
Pulse output
Differential Line Driver (Max. 10MPPS)
Encoder input
Differential line driver(Max. 4Mpps) x 2ch
Trigger output
Differential, Open-collector(24VDC level), TTL(5VDC level) x 2ch
Connector
Comm : RJ45 LAN x 2EA
CON1 : D-SUB Standard Male 25P x 1
Power : DINKLE 5P(ECH350RM-05P) x 1
Mounting method
Standard 35mm DIN rail mounting
Power supply/Current consumption
DC 24V/Max. 200mA (Connected to TB1 outside the module)
Operation temperature/humidity
Temperature 0~55°C/Humidity 5~90% (Non-condensation)
Storage temperature
-20~70°C
Weight
195g
Exterior dimension product
112(H)mm x 90(D)mm x 44(W)mm

N3ECAT-DI32/N3ECAT-DO32T/N3ECAT-DB32T

.EtherCAT based 24VDC slave Digital input/output function module
.100Mbps Full duplex
.Support various encoder input and pulse output method
.LED indicator for module status display
Item
Specifications

N3EACT-DI32
N3EACT-DO32T
N3EACT-DB32T
Module Function
32ch digital input
32ch digital output
16ch digital input
16ch digital output
Slave ID setting
Hexadecimal rotary switch x 2(00h ~ FFh)
LED display
Power(Yellow), Link(Green), Error(Red), Run(Green), Input(Green), Output(Red)
Digital Input/Ouput
32ch, 24VDC level
Input: Photo-coupler isolation(Min. 2mA/ch)
Output: Photo-coupler isolation + Drive IC(Max. 50mA/ch), NPN type
Connector
Comm.: RJ45 LAN x 2
Input/Output: DINKLE 16P(ESC381VM-16P) or Phoenix 16P(MC 1,5/16-STF-3,81) x 2 Power: DINKLE 5P(ECH350RM-05P) x 1
Mounting method
Standard 35mm DIN rail mounting
Power supply/Current consumption
DC24V/Max.300mA
DC24V/Max.200mA
DC24V/Max.250mA
Operation temperature/humidity
Temperature 0~55°C/Humidity 5~90% (Non-condensation)
Storrage temp
-20~70°C
Weight
205g
203g
203g
Exterior dimension product
112(H)mm x 90(D)mm x 54(W)mm

N3ECAT-AI16/N3ECAT-AO8

.EtherCAT based slave Analog input/output function module
.Output Range : -10 ~ +10V
.Input Range : -10 ~ +10V, -20 ~ +20mA
.100Mbps Full duplex
.LED indicator for module status display
Item
Specifications

N3EACT-AI16
N3EACT-AO8
Module Function
16ch analog Input
8ch analog Output
Slave ID setting
One Hexadecimal rotary switch x 2(03h ~ EFh)
LED display
Power(Yellow), Link(Green), Error(Red), Connection(Green)
Analog Input/Output
Voltage mode : -10V ~ 10V
Resolution : 16Bit
Electric Current Mode : -20mA~20mA
(CH1~4, control the switch)
Sampling speed : Max 4KHz
(com. cycle 250us)
Change speed : 250us
Connector
DINKLE 16 x 2EA or Phoenix 16 x 2EA
DINKLE 16 x 1EA or Phoenix 16 x 1EA
5pin Power ECH350RM-05P x 1EA
Mounting method
Standard 35mm DIN rail mounting
Power supply/Current consumption
DC 24V/Max. 200mA (Connected to TB1 outside the module)
Operation temperature/humidity
Temperature 0~55°C/Humidity 5~90% (Non-condensation)
Storrage temp
-20~70°C
Weight
202g
176g
Exterior dimension product
112(H)mm x 90(D)mm x 54(W)mm
112(H)mm x 90(D)mm x 44(W)mm
